Capacitance1E-09F
Resistance0.0139R
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Toshiba TPN14006NH,L1Q technical specifications.
General
Capacitance
1E-09F
Continuous Drain Current (ID)
13A
Drain to Source Breakdown Voltage
60V
Drain to Source Resistance
11mR
Drain to Source Voltage (Vdss)
60V
Fall Time
5.5ns
Gate to Source Voltage (Vgs)
20V
Input Capacitance
1.3nF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
30W
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
30W
Rds On Max
14mR
Resistance
0.0139R
Turn-Off Delay Time
18ns
Compliance
RoHS
Compliant
Datasheet
Toshiba TPN14006NH,L1Q Datasheet
Download the complete datasheet for Toshiba TPN14006NH,L1Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

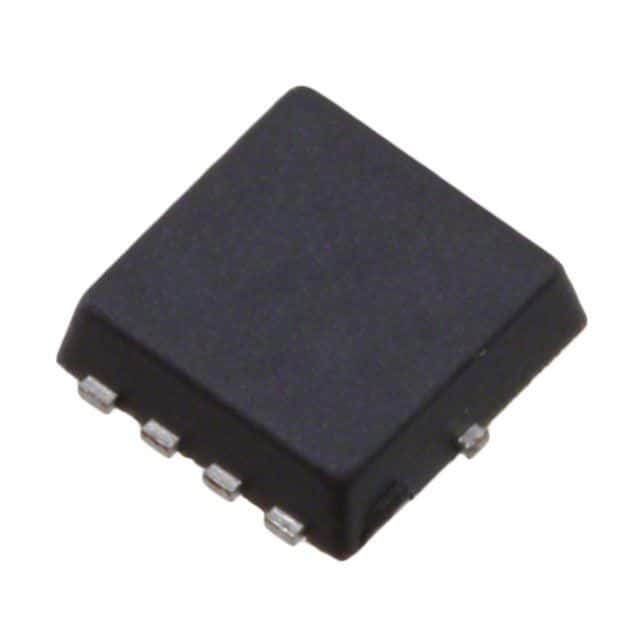

Product Images
