Capacitance7.1E-10F
MountingSurface Mount
PolarityN-CHANNEL
Power18W
Quick Jump:
Technical Specifications
Toshiba TPN22006NH,LQ technical specifications.
General
Capacitance
7.1E-10F
Continuous Drain Current (ID)
9A
Drain to Source Breakdown Voltage
60V
Drain to Source Resistance
18mR
Drain to Source Voltage (Vdss)
60V
Fall Time
3.3ns
Gate to Source Voltage (Vgs)
20V
Input Capacitance
710pF
Max Power Dissipation
18W
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
18W
Rds On Max
22mR
Turn-Off Delay Time
13ns
Compliance
RoHS
Compliant
Datasheet
Toshiba TPN22006NH,LQ Datasheet
Download the complete datasheet for Toshiba TPN22006NH,LQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

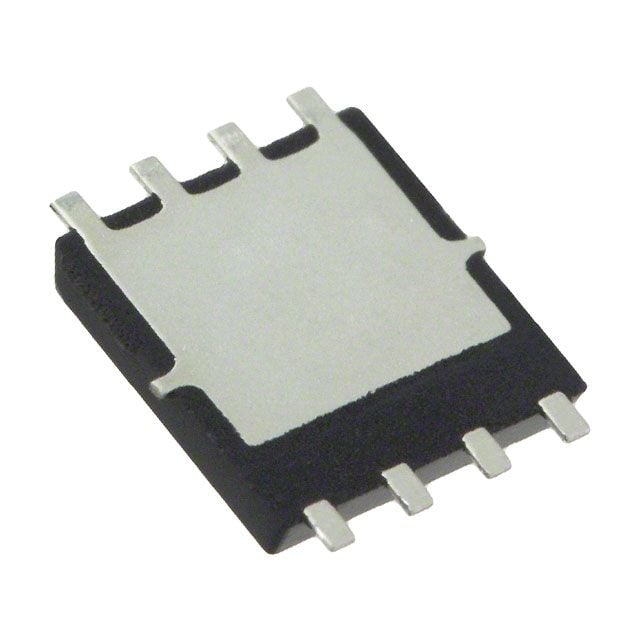

Product Images
