Board mount DC-DC converter, 6W, 3.3V output voltage, 1.2A maximum output current. Features overcurrent protection (OCP) and short-circuit protection (SCP). Operates with an input voltage range of 18V to 36V DC, nominal 24V DC. Offers 1.5kV isolation voltage and 77% efficiency. Compliant with RoHS standards, housed in a plastic DIP package.
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power TEN6-2410N technical specifications.
General
Current - Output 1
1.2A
Depth
31.8mm
Efficiency
77%
Features
OCP, SCP
Height
10.2mm
Isolation Voltage
1.5kV
Length
31.8mm
Max Input Voltage (DC)
36V
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.2A
Max Output Power
6W
Max Power Dissipation
4W
Mount
Through Hole
Nominal Input Voltage
24V
Number of Outputs
1
Output Current
1.2A
Output Voltage
3.3V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TEN 6N (6W)
Voltage - Output 1
3.3V
Weight
4.8g
Width
20.3mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TEN6-2410N Datasheet
Download the complete datasheet for Traco Power TEN6-2410N to view detailed technical specifications.
No datasheet is available for this part.

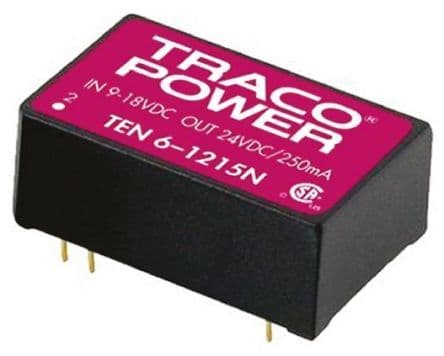

Product Images
