Board mount DC/DC converter with 8W output power, delivering 15V and -15V outputs at 267mA each. Features a wide 18-75 VDC input range, 87% efficiency, and 1.5kV isolation. Integrated protection includes UVLO, OVP, OCP, and SCP. Operates from -40°C to 85°C in a PDIP package.
PackagePDIP
MountingThrough Hole, PCB
Power8W
Quick Jump:
Technical Specifications
Traco Power TEN8-4823WI technical specifications.
General
Package/Case
PDIP
Current - Output 1
267mA
Current - Output 2
267mA
Depth
20.3mm
Efficiency
87%
Features
UVLO, OVP, OCP, SCP
Height
10.2mm
Isolation
Isolated
Isolation Voltage
1.5kV
Length
32mm
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
18V
Max Input Voltage
75V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
267mA
Max Output Power
8W
Max Power Dissipation
8W
Mount
Through Hole, PCB
Nominal Input Voltage
48V
Number of Outputs
2
Output Current
265mA
Output Power
8W
Output Voltage
15V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TEN 8WI (8W)
Voltage - Output 1
15V
Voltage - Output 2
-15V
Weight
18g
Width
20.3mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TEN8-4823WI Datasheet
Download the complete datasheet for Traco Power TEN8-4823WI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

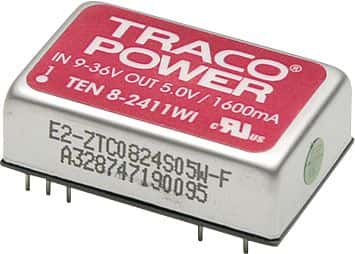

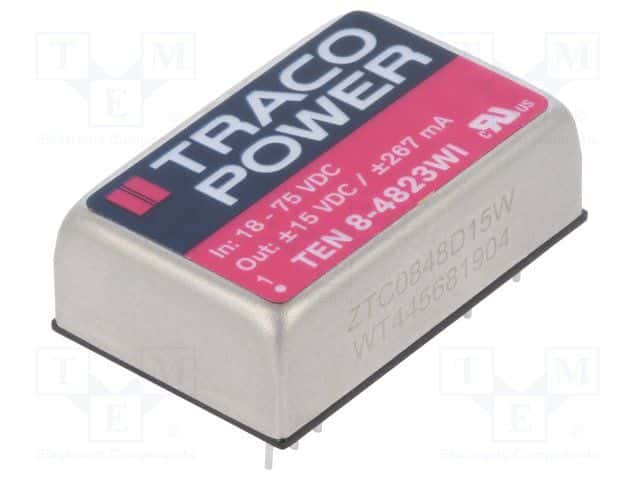

Product Images
