Isolated DC/DC converter, board mount, 15W output power, 5V nominal output voltage, and 3A maximum output current. Features a 9V to 36V DC input voltage range, 1.6kV isolation voltage, and 86% efficiency. Operates across a -40°C to 85°C temperature range. Through-hole mounting and RoHS compliant.
MountingThrough Hole
Power15W
Quick Jump:
Technical Specifications
Traco Power THN15-2411WI technical specifications.
General
Current - Output 1
3A
Depth
25.4mm
Efficiency
86%
Height
9.9mm
Isolation
Isolated
Isolation Voltage
1.6kV
Length
25.4mm
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
9V
Max Input Voltage
36V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Power
15W
Mount
Through Hole
Nominal Input Voltage
24V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
3A
Output Power
15W
Output Voltage
5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
THN 15WI
Voltage - Output 1
5V
Weight
15g
Width
25.4mm
Compliance
RoHS
Compliant
Datasheet
Traco Power THN15-2411WI Datasheet
Download the complete datasheet for Traco Power THN15-2411WI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

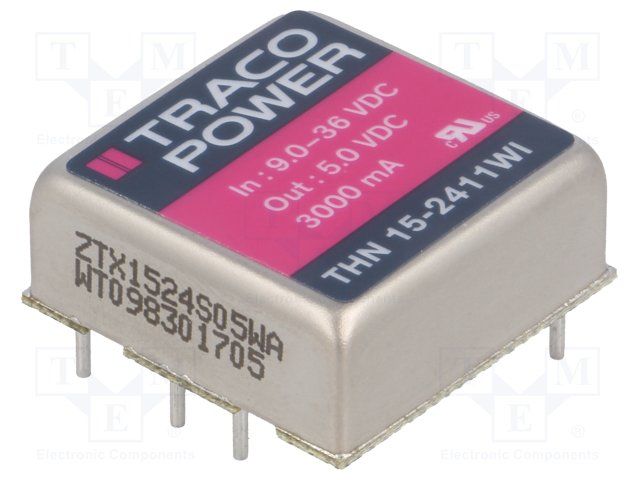

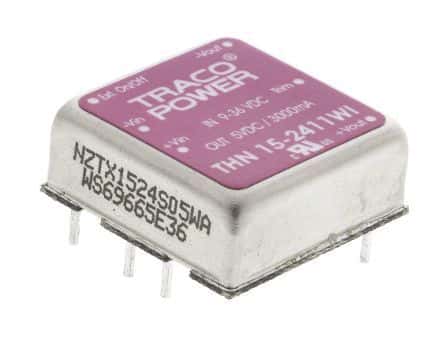

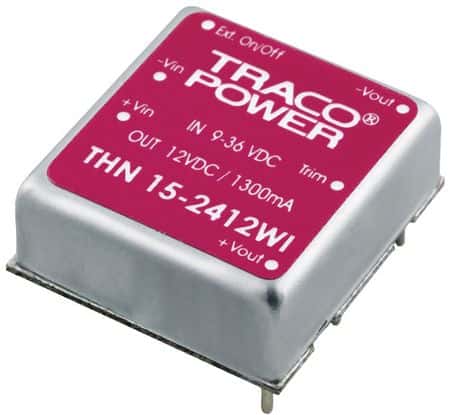

Product Images
