Board mount DC-DC converter offering 1W total output power with two regulated 5V and -5V outputs, each capable of 100mA. This hybrid module features a 21.6V to 26.4V DC input range, 1kV isolation voltage, and 72% efficiency. Designed for through-hole mounting in a SIP-6/5 package, it operates from -40°C to 85°C and includes short-circuit protection. The component is RoHS compliant and meets UL94 V-0 flammability rating.
MountingThrough Hole
PowerYes
Quick Jump:
Technical Specifications
Traco Power TMA2405D technical specifications.
General
Current - Output 1
100mA
Current - Output 2
100mA
Depth
19.5mm
Efficiency
72%
Features
SCP
Flammability Rating
UL94 V-0
Height
10.2mm
Isolation Voltage
1kV
Length
19.5mm
Max Input Voltage (DC)
26.4V
Min Input Voltage (DC)
21.6V
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Power
1W
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
24V
Number of Outputs
2
Output Current
100mA
Output Voltage
5V
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMA (1W)
Voltage - Output 1
5V
Voltage - Output 2
-5V
Weight
2.6g
Width
6.1mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMA2405D Datasheet
Download the complete datasheet for Traco Power TMA2405D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

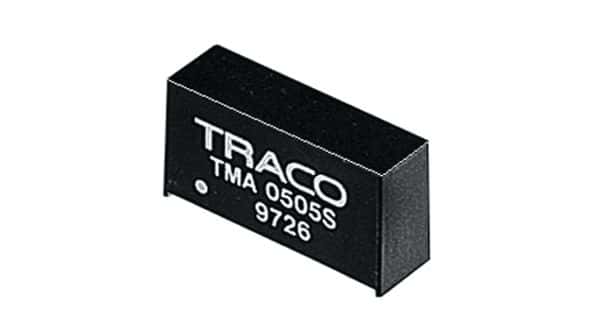

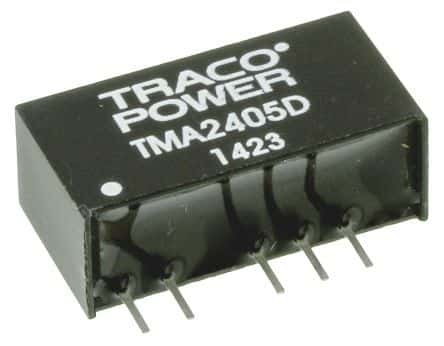

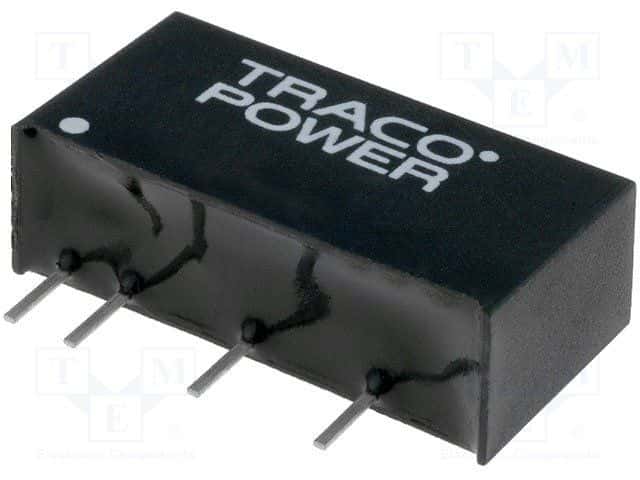

Product Images
