Enclosed AC/DC power supply module featuring dual adjustable outputs of 15V and -15V, each delivering up to 667mA. This 20W power module operates with an efficiency of 84% across a wide AC input range of 85-264V. Designed for versatility, it offers a compact module package with dimensions of 96mm x 55mm x 27.6mm and a weight of 155g. Operating temperature range spans from -25°C to 60°C, with RoHS compliance.
PackageModule
Quick Jump:
Technical Specifications
Traco Power TML20215C technical specifications.
General
Package/Case
Module
Current - Output 1
667mA
Current - Output 2
667mA
Depth
27.6mm
Efficiency
84%
Height
28mm
Length
96mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Max Output Current
667mA
Max Output Power
20W
Number of Outputs
2
Output Current
667mA
Output Voltage
15V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage - Output 1
15V
Voltage - Output 2
-15V
Weight
155g
Width
55mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TML20215C Datasheet
Download the complete datasheet for Traco Power TML20215C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

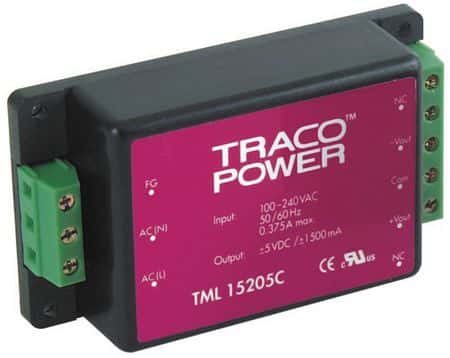

Product Images
