2W DC/DC Converter, SIP package, featuring dual isolated outputs of +/-15V at 65mA each. Operates with a 9V to 36V DC input range, delivering 2W maximum output power with 79% efficiency. Includes short-circuit protection (SCP) and 1.5kV isolation voltage. Dimensions are 26mm (L) x 9.3mm (W) x 12.5mm (H), with a through-hole mounting type. Operating temperature range is -40°C to 85°C.
PackageSIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Traco Power TMR2-2423WI technical specifications.
General
Package/Case
SIP
Current - Output 1
65mA
Current - Output 2
65mA
Depth
9.3mm
Efficiency
79%
Features
SCP
Height
12.5mm
Isolation
Isolated
Isolation Voltage
1.5kV
Length
26mm
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
9V
Max Input Voltage
36V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
65mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Through Hole
Nominal Input Voltage
24V
Number of Outputs
2
Output Current
65mA
Output Power
2W
Output Voltage
15V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMR 2WI (2W)
Voltage - Output 1
15V
Voltage - Output 2
-15V
Width
9.3mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMR2-2423WI Datasheet
Download the complete datasheet for Traco Power TMR2-2423WI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

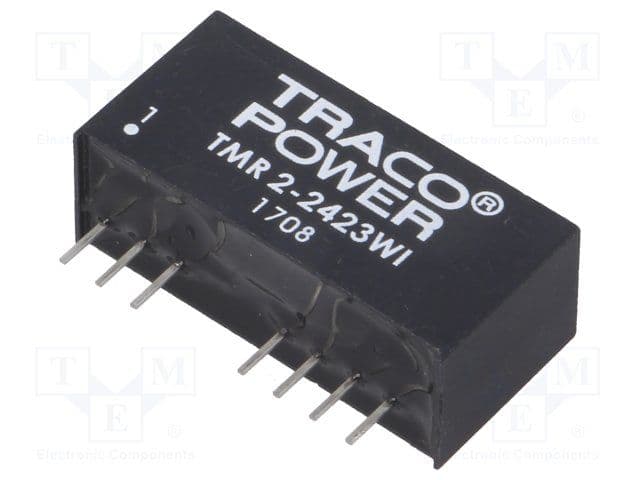

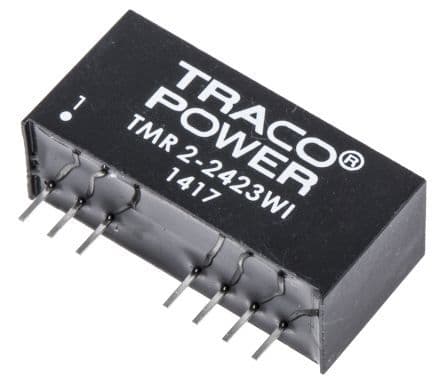

Product Images
