Board mount DC/DC converter with 3W output power and 5V output voltage. Features 600mA maximum output current, 18-36VDC input voltage range, and 82% efficiency. Offers 1.5kV isolation and operates across a -40°C to 85°C temperature range. SIP package for through-hole mounting.
PackageSIP
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
Traco Power TMR3-2411 technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 600mA |
| Depth | 21.8mm |
| Efficiency | 82% |
| Height | 11.1mm |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 21.8mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Max Output Power | 3W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 600mA |
| Output Power | 3W |
| Output Voltage | 5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TMR 3 |
| Voltage - Output 1 | 5V |
| Weight | 4.8g |
| Width | 9.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TMR3-2411 Datasheet
Download the complete datasheet for Traco Power TMR3-2411 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

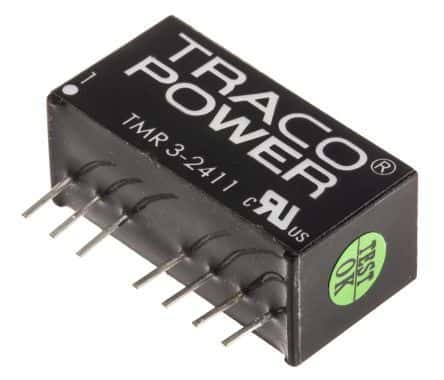

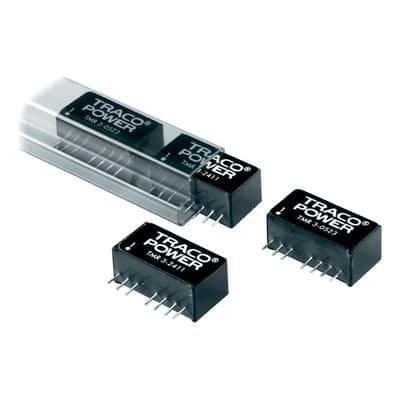

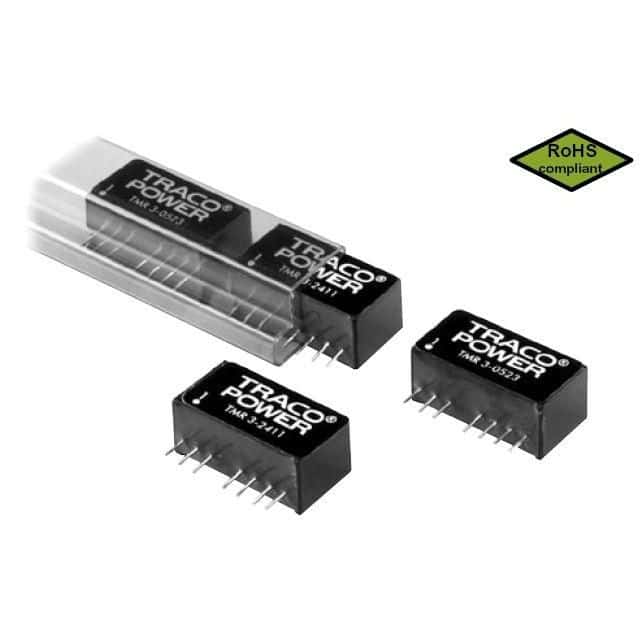

Product Images
