3W isolated DC-DC converter with dual +/-15V outputs, each delivering 100mA. Features 1.6kV isolation, 81% efficiency, and short-circuit protection (SCP). Operates from a 9V to 36V DC input range with a nominal input of 24V. Packaged in a SIP for through-hole mounting, measuring 21.8mm x 9.2mm x 11.1mm. Suitable for operation between -40°C and 85°C.
PackageSIP
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
Traco Power TMR3-2423WI technical specifications.
General
Package/Case
SIP
Current - Output 1
100mA
Current - Output 2
100mA
Depth
9.2mm
Efficiency
81%
Features
SCP
Height
11.1mm
Isolation
Isolated
Isolation Voltage
1.6kV
Length
21.8mm
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
9V
Max Input Voltage
36V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Power
3W
Max Power Dissipation
3W
Mount
Through Hole
Nominal Input Voltage
24V
Number of Outputs
2
Output Current
100mA
Output Power
3W
Output Voltage
15V
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TMR 3WI (3W)
Voltage - Output 1
15V
Voltage - Output 2
-15V
Weight
4.8g
Width
9.2mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMR3-2423WI Datasheet
Download the complete datasheet for Traco Power TMR3-2423WI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

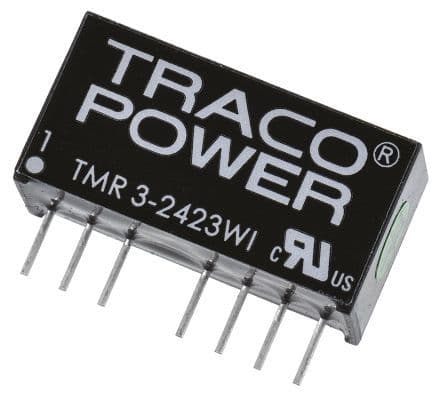

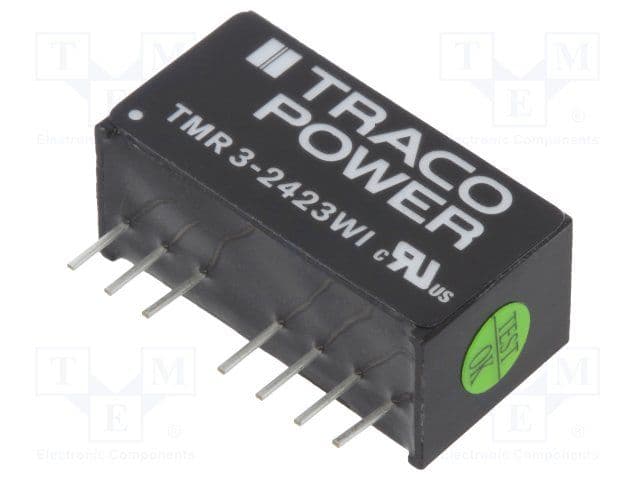

Product Images
