Current Transformer, 100:1 turns ratio, designed for general applications. Features a 110A current rating and operates within a 20 to 200 kHz frequency range. Primary DC resistance is 580mR with a primary inductance of 14mH. This through-hole mounted component utilizes PC pin termination and is UL approved and RoHS compliant.
Frequency200kHz
Current Rating110A
MountingThrough Hole, PCB
Inductance14mH
Quick Jump:
Technical Specifications
Triad Magnetics CST206-1A technical specifications.
General
Approvals
UL
Current Rating
110A
DC Resistance (DCR)
580mR
Frequency
200kHz
Height
31.11mm
Inductance
14mH
Input Current
110A
Lead Free
Lead Free
Length
27.3mm
Mount
Through Hole, PCB
Number of Turns
100
Operating Frequency
20 to 200 kHz
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
CST
Termination
PC Pin
Turns Ratio
100:1
Weight
0.576oz
Width
10.16mm
Compliance
RoHS
Compliant
Datasheet
Triad Magnetics CST206-1A Datasheet
Download the complete datasheet for Triad Magnetics CST206-1A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

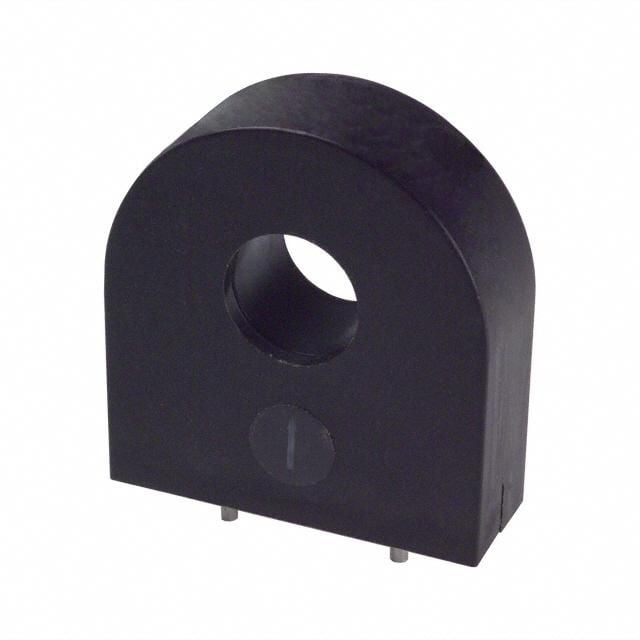

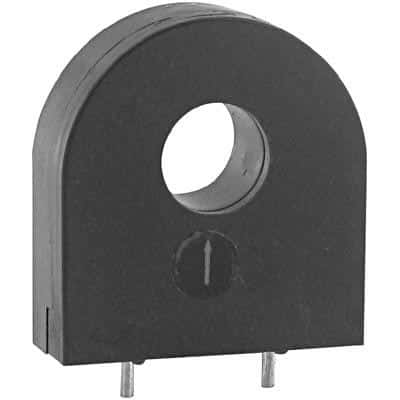

Product Images
