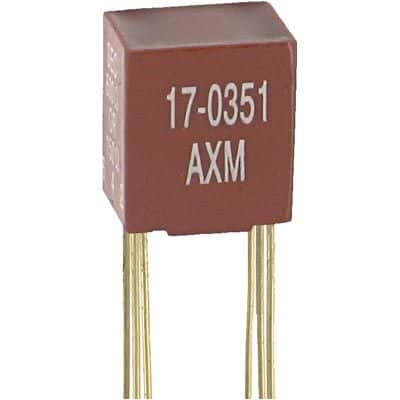

Audio Transformer 2:1:1, 1kV Isolation, 600R Pri/Sec, 100kHz

Triad Magnetics

SP-69

Name: SP-69 Triad Magnetics
Brand: Triad Magnetics
SKU: SP-69

Audio Transformer 2:1:1, 1kV Isolation, 600R Pri/Sec, 100kHz

High-reliability audio transformer with a 2:1:1 turns ratio, featuring 600 Ohm primary and secondary impedance. Operates across a 0.3 to 100 kHz frequency range, with a maximum isolation voltage of 1kV and a DC rated voltage of 150V. This through-hole component offers 72 Ohm primary DCR and 40 Ohm secondary DCR, supporting up to 3mA current and 50mW output power. Designed for PCB mounting with PC pin termination, it is RoHS compliant and operates from -40°C to 85°C.

Frequency100kHz

Current Rating3mA

MountingThrough Hole, PCB

Power50mW

Quick Jump:

Technical Specifications

Triad Magnetics SP-69 technical specifications.

General

Application(s)	HIGH RELIABILITY
Current Rating	3mA
DC Resistance (DCR)	72R
Frequency	100kHz
Height	11.811mm
Isolation Voltage	1kV
Lead Free	Lead Free
Length	7.874mm
Max Frequency	100kHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Through Hole, PCB
Operating Frequency	0.3 to 100 kHz
Output Power	50mW
Package Quantity	1
Packaging	Bulk
Primary Impedance	600R
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Secondary Impedance	600R
Series	Red-Spec
Termination	PC Pin
Turns Ratio	2.1:1
DC Rated Voltage	150V
Weight	0.4oz
Width	10.41mm
