Technical Specifications
TT 67YR100KLFTB technical specifications.
General
| Height | 0.409inch |
| Lead Free | Lead Free |
| Length | 9.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Number of Turns | 20 |
| Package Quantity | 50 |
| Packaging | Tape and Reel |
| Resistance | 100kR |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | 67 |
| Termination | PC Pins |
| Tolerance | 10% |
| Type | Potentiometer |
| Voltage Rating | 200V |
| Width | 4.95mm |
Compliance
| RoHS | Compliant |
Datasheet
TT 67YR100KLFTB Datasheet
Download the complete datasheet for TT 67YR100KLFTB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

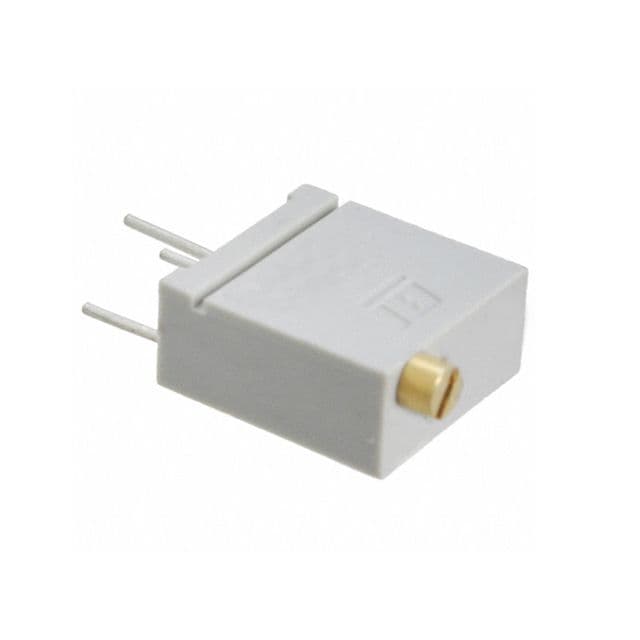

Product Images
