Surface mount, shielded wirewound power inductor offering 68µH inductance with a 20% tolerance. Features a dual coil design with series inductance of 272µH and parallel inductance of 68µH. Rated for 2.6A RMS current and 4.1A maximum DC current. DC resistance is 105mΩ (parallel) and 420mΩ (series). Operates within a temperature range of -40°C to 125°C.
PackageNonstandard
Current1.3A
MountingSurface Mount
Inductance68uH
Quick Jump:
Technical Specifications
TT HM78D-128680MLFTR technical specifications.
General
Package/Case
Nonstandard
Current
1.3A
DC Resistance (DCR)
210mR
DC Resistance (DCR) - Parallel
105mR
DC Resistance (DCR) - Series
420mR
Height
0.317inch
Inductance
68uH
Inductance - Parallel
68uH
Inductance - Series
272uH
Inductance Tolerance
20%
Length
0.492inch
Max DC Current
4.1A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Coils
2
Package Quantity
500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RMS Current (Irms)
2.6A
RoHS Compliant
Yes
Series
HM78D
Shielding
Shielded
Termination
SMD/SMT
Tolerance
20%
Width
12.5mm
Compliance
RoHS
Compliant
Datasheet
TT HM78D-128680MLFTR Datasheet
Download the complete datasheet for TT HM78D-128680MLFTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

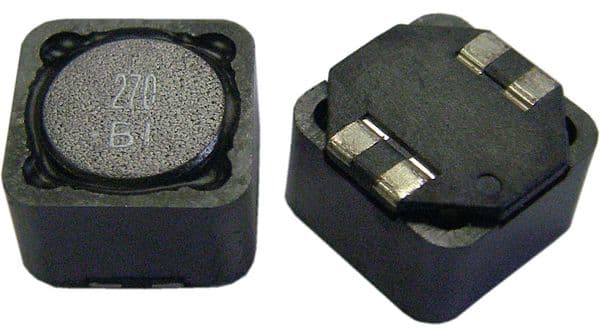

Product Images
