TT
OHN3120U
Hall Effect Sensor, 5mT Min, 42.5mT Max, 25mA, Bipolar, Plastic/epoxy, Rectangular, 3 Pin, Through Hole Mount, ROHS COMPLIANT, PACKAGE-4
PackageSIP
Current9mA
MountingThrough Hole
Quick Jump:
Technical Specifications
TT OHN3120U technical specifications.
General
Package/Case
SIP
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Output Current
25mA
Max Supply Current
7mA
Max Supply Voltage
24V
Min Supply Voltage
4.5V
Mount
Through Hole
Output Current
25mA
Output Voltage
25V
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
OHN3100
Supply Current
9mA
Type
Hall Effect Sensor
Compliance
RoHS
Compliant
Datasheet
TT OHN3120U Datasheet
Download the complete datasheet for TT OHN3120U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

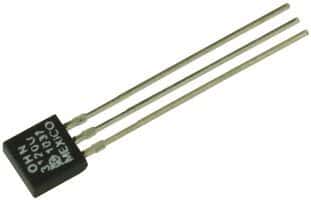

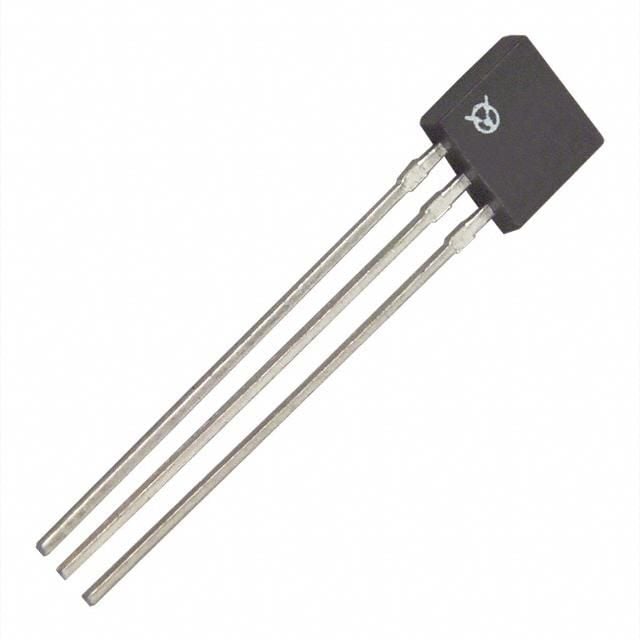

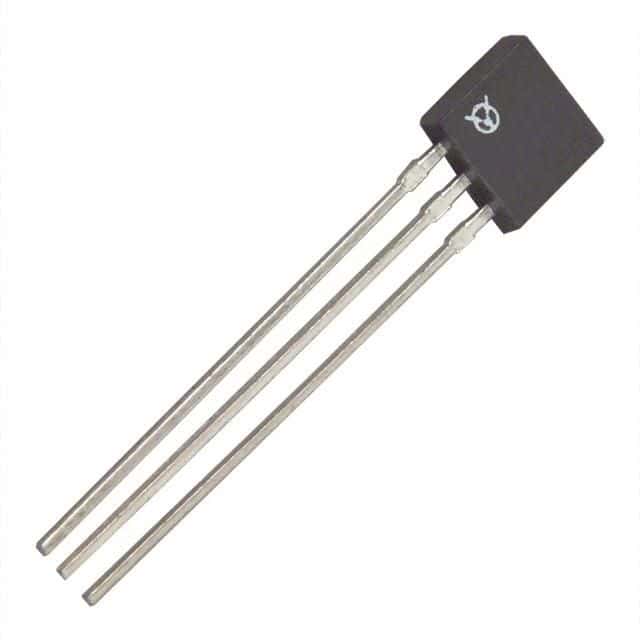

Product Images
