1-channel slotted optical sensor with phototransistor output. Features a 3.18mm slot width and 880nm IR wavelength. With a 30V collector-emitter breakdown voltage and 50mA forward current, it operates from -40°C to 80°C. The plastic package measures 23.75mm x 6.35mm x 10.54mm and supports chassis or screw mounting. This RoHS compliant component is supplied in bulk packaging.
MountingChassis Mount, Screw
Power100mW
Quick Jump:
Technical Specifications
TT OPB830W55Z technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
30V
Forward Current
50mA
Height
10.54mm
Input Current
20mA
Lead Free
Lead Free
Length
23.75mm
Material
Plastic
Max Collector Current
30mA
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Mount
Chassis Mount, Screw
Number of Channels
1
Number of Elements
1
Output Configuration
Phototransistor
Package Quantity
25
Packaging
Bulk
Power Dissipation
100mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
2V
Reverse Voltage (DC)
2V
RoHS Compliant
Yes
Termination
Lead Wire
Touchscreen
Infrared (IR)
Wavelength
880nm
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
TT OPB830W55Z Datasheet
Download the complete datasheet for TT OPB830W55Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

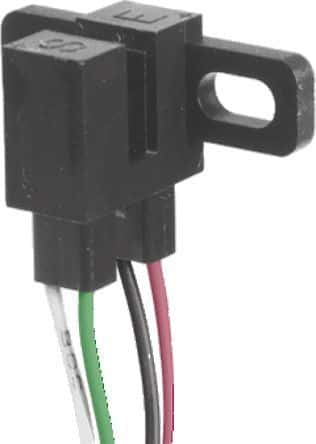

Product Images
