Technical Specifications
TT P0915N-FC15BR100K technical specifications.
General
| Height | 26mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 50mW |
| Mount | Panel |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Packaging | Tray |
| Resistance | 100kR |
| Resistor Type | Conductive Plastic |
| RoHS Compliant | Yes |
| Series | P09x |
| Taper | Linear |
| Termination | PC Pins |
| Tolerance | 20% |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
Compliance
| RoHS | Compliant |
Datasheet
TT P0915N-FC15BR100K Datasheet
Download the complete datasheet for TT P0915N-FC15BR100K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

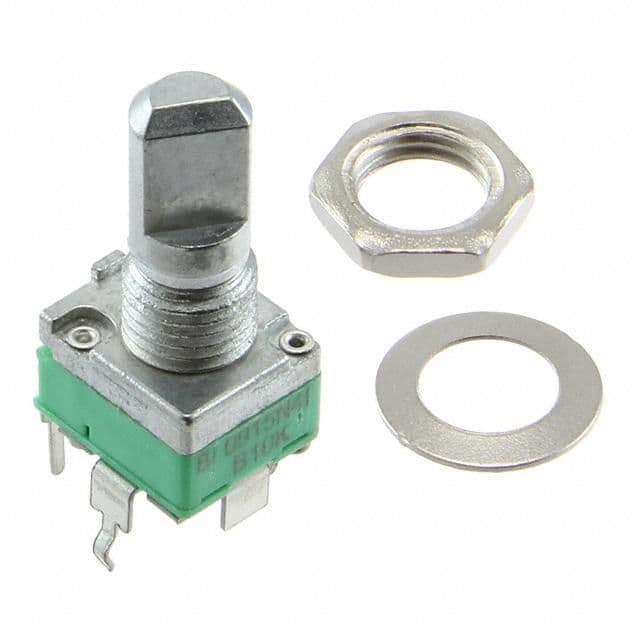

Product Images
