Technical Specifications
TT P0915N-QC20BR5K technical specifications.
General
| Actuator Diameter | 0.236inch |
| Actuator Length | 0.787inch |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Power Dissipation | 50mW |
| Mount | Panel, Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resistance | 5kR |
| Resistance Tolerance | 20% |
| Resistor Type | Conductive Plastic |
| RoHS Compliant | Yes |
| Series | P09x |
| Taper | Linear |
| Technology | CONDUCTIVE PLASTIC |
| Termination | Pin |
| Tolerance | 20% |
| Type | Potentiometer |
Compliance
| RoHS | Compliant |
Datasheet
TT P0915N-QC20BR5K Datasheet
Download the complete datasheet for TT P0915N-QC20BR5K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

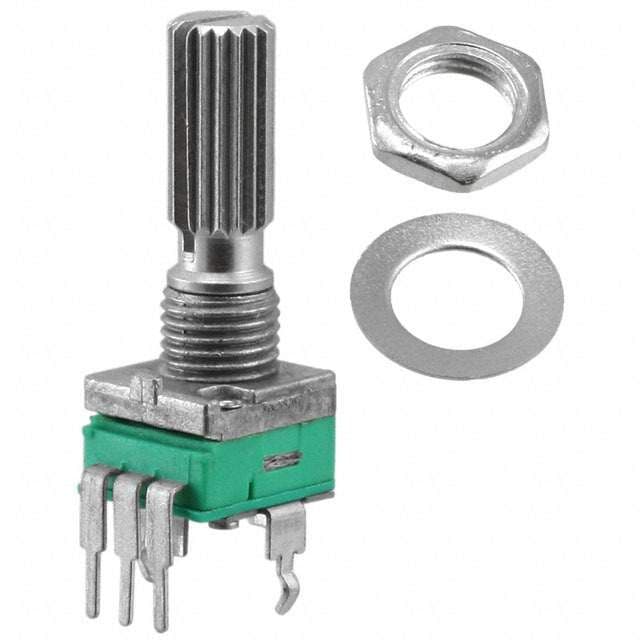

Product Images
