This wirewound resistor has a resistance of 2.2kR with a tolerance of 5%. It operates within a temperature range of -55°C to 200°C and is rated for 500V. The resistor is packaged in an axial configuration with a conformal coating and is RoHS compliant.
PackageConformal
Resistance2.2kR
Voltage Rating500V
Quick Jump:
Technical Specifications
TT W23 2K2 JI technical specifications.
General
| Package/Case | Conformal |
| Diameter | 8mm |
| Lead Length | 30mm |
| Length | 38mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Reach SVHC Compliant | No |
| Resistance | 2.2kR |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | W23 |
| Technology | WIRE WOUND |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
TT W23 2K2 JI Datasheet
Download the complete datasheet for TT W23 2K2 JI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

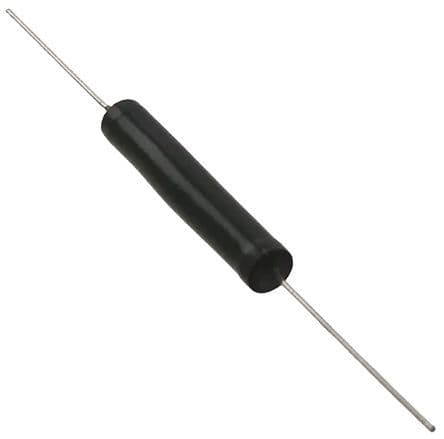

Product Images
