Technical Specifications
TXC 7B-13.000MEEQ-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 3.2mm |
| ESR (Equivalent Series Resistance) | 40R |
| Frequency | 13MHz |
| Frequency Stability | 10ppm |
| Frequency Tolerance | 10ppm |
| Height | 0.041inch |
| Length | 5mm |
| Load Capacitance | 10pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Series | 7B |
| Termination | SMD/SMT |
| Tolerance | 10ppm |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TXC 7B-13.000MEEQ-T Datasheet
Download the complete datasheet for TXC 7B-13.000MEEQ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

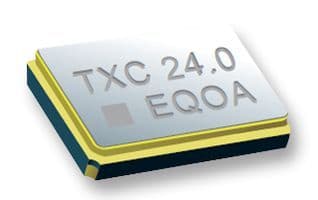

Product Images
