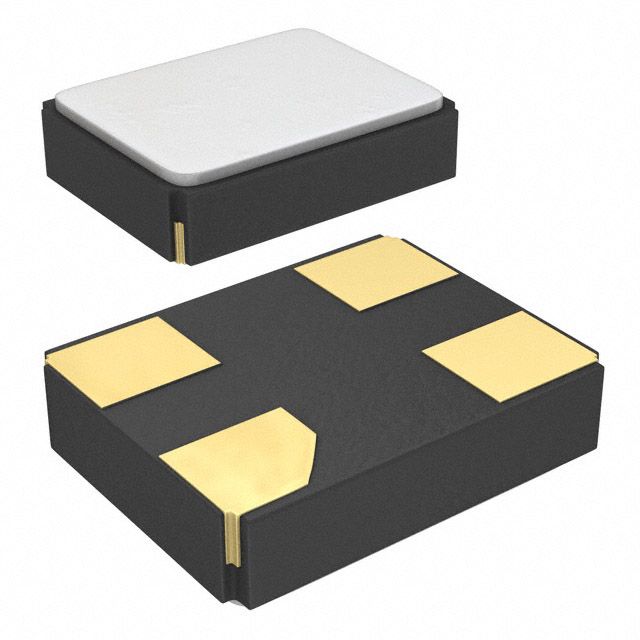

16MHz SMD crystal oscillator featuring 12pF load capacitance and 30ppm frequency tolerance. This surface mount component offers a 60 Ohm ESR and operates within a -40°C to 85°C temperature range. Its compact 3.2mm x 2.5mm x 0.8mm SMD package is lead-free and RoHS compliant, supplied in cut tape packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TXC 7V-16.000MAHE-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 60R |
| Frequency | 16MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Load Capacitance | 12pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | 7V |
| Series Resistance | 60R |
| Tolerance | 0.003% |
| Width | 2.5mm |
| RoHS | Compliant |
