This 16MHz oscillator features a frequency stability of 25ppm and operates within a temperature range of -10°C to 70°C. It is designed for surface mount applications and is powered by a 3.3V supply voltage, drawing a maximum current of 20mA. The oscillator is packaged in a tape and reel format with 1000 units per reel, and is compliant with RoHS regulations.
Frequency16MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 7W-16.000MBA-T technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 16MHz |
| Frequency Stability | 25ppm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Supply Current | 20mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 7W |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
TXC 7W-16.000MBA-T Datasheet
Download the complete datasheet for TXC 7W-16.000MBA-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

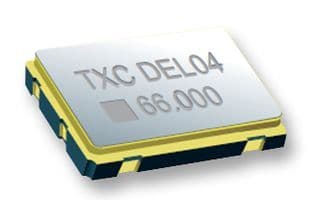

Product Images
