The 7W-50.000MBA-T is a surface mount oscillator with a frequency of 50MHz and a frequency stability of 25ppm. It operates within a temperature range of -10°C to 70°C and has a maximum supply current of 20mA. The oscillator is supplied with 3.3V and is packaged in a tape and reel format with 1000 units per package.
Frequency50MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 7W-50.000MBA-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 5mm |
| Frequency | 50MHz |
| Frequency Stability | 25ppm |
| Length | 7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Supply Current | 20mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | 7W |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
TXC 7W-50.000MBA-T Datasheet
Download the complete datasheet for TXC 7W-50.000MBA-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

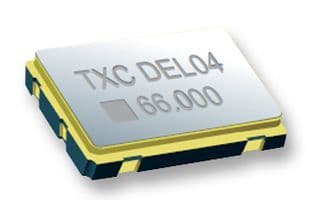

Product Images
