25MHz crystal oscillator, surface mount (SMD/SMT) package. Features 30ppm frequency stability and tolerance, 18pF load capacitance, and 100 Ohms ESR. Operates within a -20°C to +70°C temperature range. Dimensions: 1.6mm width, 2mm height, 2mm length. RoHS compliant.
Frequency25MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 8Y-25.000MAAJ-T technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 100R |
| Frequency | 25MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.02inch |
| Length | 0.079inch |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 8Y |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
TXC 8Y-25.000MAAJ-T Datasheet
Download the complete datasheet for TXC 8Y-25.000MAAJ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

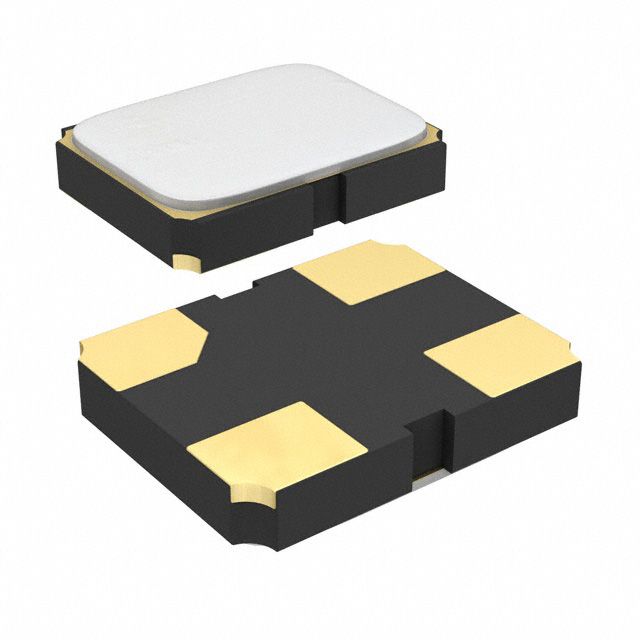

Product Images
