Technical Specifications
TXC AM-28.63636MAGK-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 2.5mm |
| ESR (Equivalent Series Resistance) | 80R |
| Frequency | 28.63636MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.7mm |
| Length | 3.2mm |
| Load Capacitance | 20pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Series | AM |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
TXC AM-28.63636MAGK-T Datasheet
Download the complete datasheet for TXC AM-28.63636MAGK-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

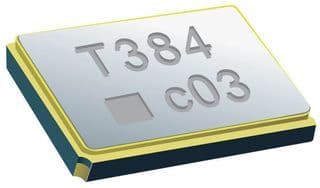

Product Images
