Technical Specifications
TXC AT-11.2896MAGK-T technical specifications.
General
| ESR (Equivalent Series Resistance) | 70R |
| Frequency | 11.2896MHz |
| Frequency Stability | 50ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.161inch |
| Length | 0.492inch |
| Load Capacitance | 20pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Series | AT |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TXC AT-11.2896MAGK-T Datasheet
Download the complete datasheet for TXC AT-11.2896MAGK-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

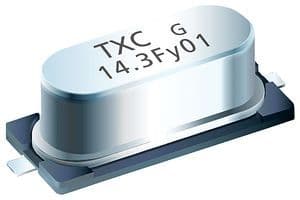

Product Images
