United Chemi-Con
APXA6R3ARA101MF55G
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 100uF, 2826
PackageRadial
Capacitance100uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
United Chemi-Con APXA6R3ARA101MF55G technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| ESR (Equivalent Series Resistance) | 27mR |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Ripple Current | 2.4A |
| RoHS Compliant | Yes |
| Series | NPCAP™-PXA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con APXA6R3ARA101MF55G Datasheet
Download the complete datasheet for United Chemi-Con APXA6R3ARA101MF55G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

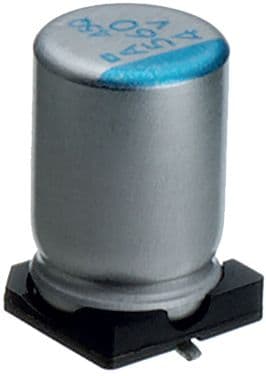

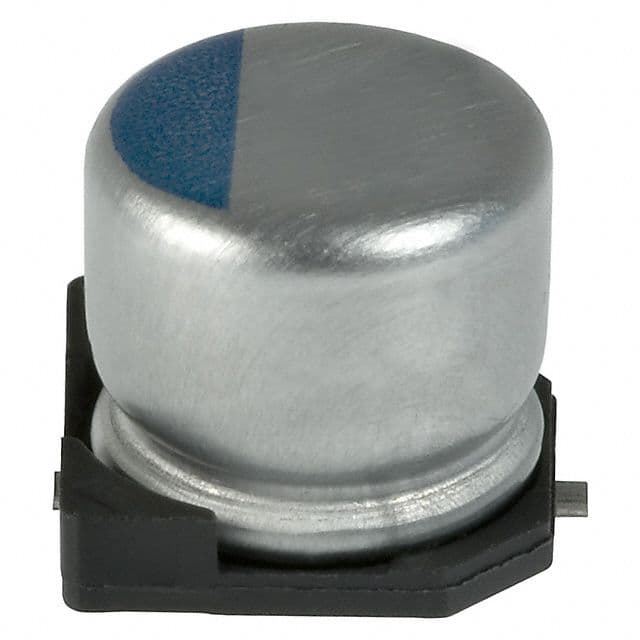

Product Images
