United Chemi-Con
APXE160ARA101MH70G
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 100uF, 3533
PackageRadial
Capacitance100uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
United Chemi-Con APXE160ARA101MH70G technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 24mR |
| Height | 8.3mm |
| Leakage Current | 320uA |
| Length | 6.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 3.01A |
| RoHS Compliant | Yes |
| Series | NPCAP™-PXE |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con APXE160ARA101MH70G Datasheet
Download the complete datasheet for United Chemi-Con APXE160ARA101MH70G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

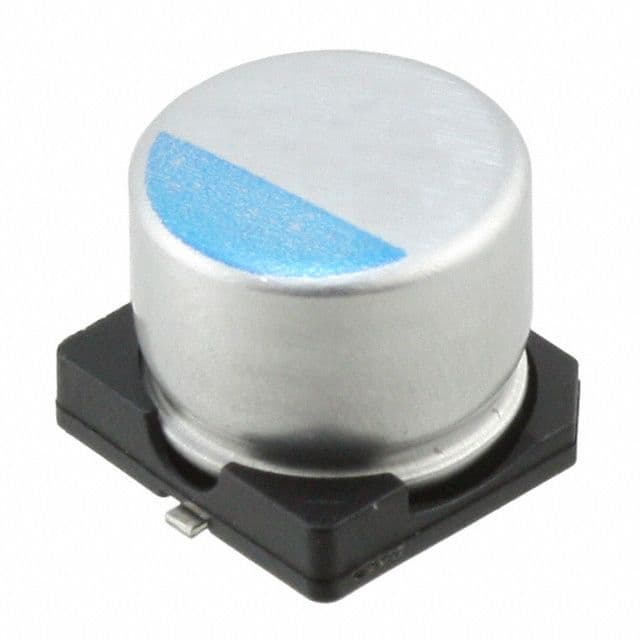

Product Images
