United Chemi-Con
APXF4R0ARA331MF61G
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 4V, 20% +Tol, 20% -Tol, 330uF, 2826
PackageRadial
Capacitance330uF
Voltage Rating4V
MountingSurface Mount
Quick Jump:
Technical Specifications
United Chemi-Con APXF4R0ARA331MF61G technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 10mR |
| Leakage Current | 396uA |
| Length | 5.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Ripple Current | 3.9A |
| RoHS Compliant | Yes |
| Series | NPCAP™-PXF |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con APXF4R0ARA331MF61G Datasheet
Download the complete datasheet for United Chemi-Con APXF4R0ARA331MF61G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

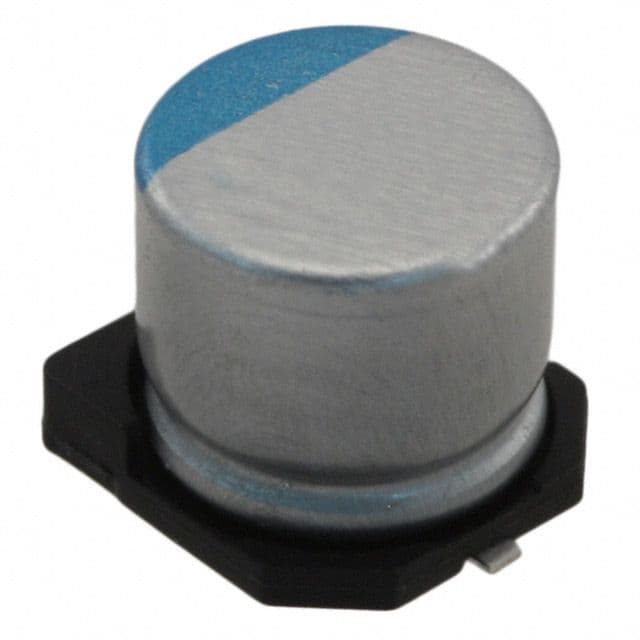

Product Images
