Radial aluminum electrolytic capacitor, 10µF capacitance, 100V DC rated voltage, and 20% tolerance. Features a 105°C maximum operating temperature, 1000-hour life, and 54mA ripple current at 120kHz. Constructed with tin-plated leads and a 2.5mm lead pitch, this RoHS compliant component is designed for through-hole mounting.
PackageRadial
Voltage100V
Capacitance10uF
Voltage Rating100V
Quick Jump:
Technical Specifications
United Chemi-Con EKMG101ELL100MF11D technical specifications.
General
Capacitance
10uF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
8%
Height
11mm
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Lead/Base Style
Straight
Length
11mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
2000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
54mA
RoHS Compliant
Yes
Series
KMG
Termination
Radial
Test Frequency
120kHz
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
United Chemi-Con EKMG101ELL100MF11D Datasheet
Download the complete datasheet for United Chemi-Con EKMG101ELL100MF11D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

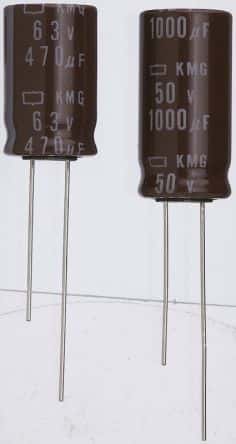

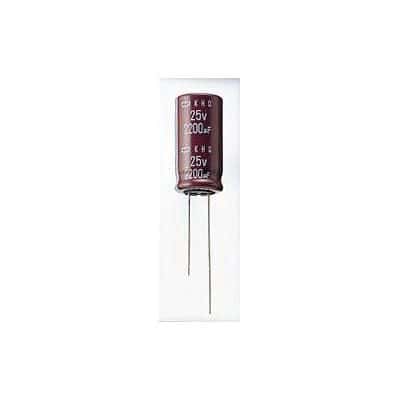

Product Images
