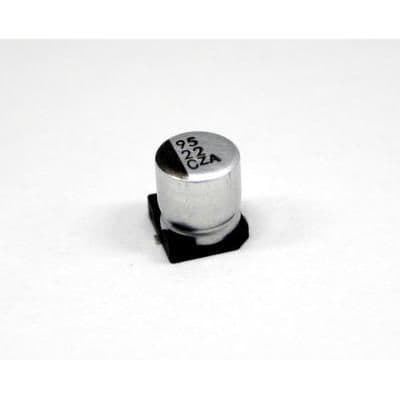

EMZA160ADA220MD61G

22uF 16V Aluminum Electrolytic Capacitor, 1.35R ESR, 90mA Ripple, SMD

Aluminum electrolytic capacitor, 22µF capacitance, 16V voltage rating, 20% tolerance. Features 1.35Ω ESR and 90mA ripple current. Operates from -55°C to 105°C with a 2000-hour life. Surface mount package with 4mm diameter and 5.8mm height, supplied in tape and reel. AEC-Q200 qualified and RoHS compliant.

PackageRadial

Voltage16V

Capacitance22uF

Voltage Rating16V

Quick Jump:

Technical Specifications

United Chemi-Con EMZA160ADA220MD61G technical specifications.

General

Capacitance	22uF
Package/Case	Radial
Construction	Cylindrical
Diameter	4mm
Dielectric Material	Aluminium
ESR (Equivalent Series Resistance)	1.35R
Height	5.8mm
Height - Seated (Max)	0.228inch
Impedance	1.35R
Lead Diameter	0.8mm
Lead Free	Lead Free
Lead Pitch	1mm
Leakage Current	3uA
Length	5.8mm
Life (Hours)	2000Hour
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Surface Mount
Package Quantity	1
Packaging	Tape and Reel
Ratings	AEC-Q200
Reach SVHC Compliant	Unknown
Ripple Current	90mA
Ripple Current (AC)	90mA
RoHS Compliant	Yes
Series	MZA
Termination	SMD/SMT
Tolerance	20%
Voltage	16V
Voltage Rating	16V
DC Rated Voltage	16V
