Technical Specifications
Vishay 1N4448-TR technical specifications.
General
| Average Rectified Current | 150mA |
| Capacitance | 2pF |
| Package/Case | DO-35 |
| Current Rating | 200mA |
| Forward Current | 150mA |
| Lead Free | Lead Free |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Voltage (DC) | 100V |
| Mount | Through Hole |
| Output Current | 200mA |
| Packaging | Cut Tape |
| Polarity | Standard |
| Power Dissipation | 500mW |
| Reverse Recovery Time | 8ns |
| Reverse Recovery Time-Max | 4ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 1N4448-TR Datasheet
Download the complete datasheet for Vishay 1N4448-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

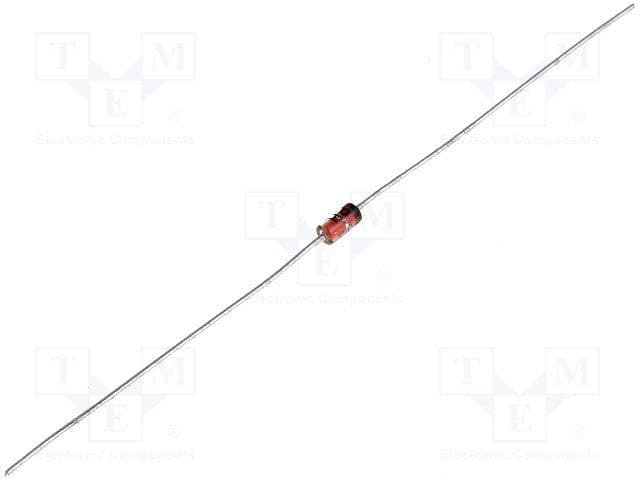

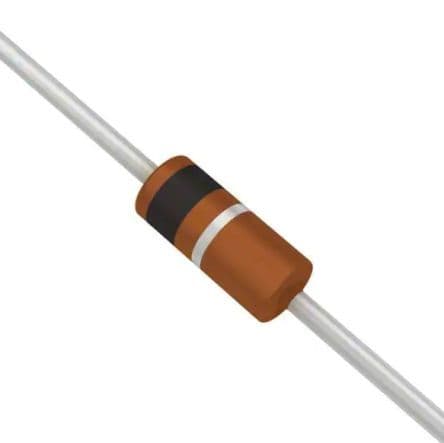

Product Images
