Technical Specifications
Vishay 1N5060GP-E3/54 technical specifications.
General
Average Rectified Current
1A
Package/Case
DO-15
Diameter
3.6mm
Forward Current
1A
Lead Free
Lead Free
Length
0.299inch
Max Forward Surge Current (Ifsm)
50A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
400V
Max Surge Current
50A
Mount
Through Hole
Package Quantity
4000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
50A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Recovery Time
2us
Reverse Voltage
400V
RoHS Compliant
Yes
Series
SUPERECTIFIER®
Compliance
RoHS
Compliant
Datasheet
Vishay 1N5060GP-E3/54 Datasheet
Download the complete datasheet for Vishay 1N5060GP-E3/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

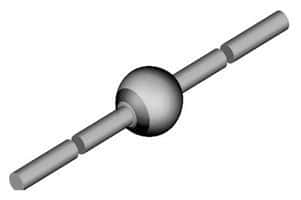

Product Images
