500mW Zener Diode with a 6.8V working voltage and 5% voltage tolerance. Features a 1.7mm diameter, 3.9mm length, and 1.7mm height in a DO-35 package. Operates from -65°C to 175°C with a maximum reverse leakage current of 3µA. Through-hole mount, lead-free, and RoHS compliant.
PackageDO-35
Voltage Rating6.8V
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Vishay 1N5235B-TR technical specifications.
General
Package/Case
DO-35
Contact Plating
Tin, Silver
Diameter
1.7mm
ESD Protection
No
Height
1.7mm
Impedance
5R
Lead Free
Lead Free
Length
3.9mm
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Max Reverse Current
3uA
Max Reverse Leakage Current
3uA
Mount
Through Hole
Package Quantity
30000
Packaging
Tape and Reel
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Tolerance
5%
Voltage Tolerance
5%
Width
1.7mm
Working Voltage
6.8V
Zener Current
200mA
Zener Voltage
6.8V
Compliance
RoHS
Compliant
Datasheet
Vishay 1N5235B-TR Datasheet
Download the complete datasheet for Vishay 1N5235B-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

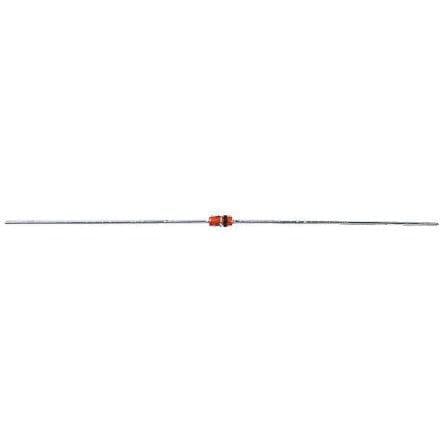

Product Images
