Unidirectional TVS Diode with 1.5kW peak pulse power and 32.8A peak pulse current. Features a 28.2V reverse standoff voltage, 31.4V minimum breakdown voltage, and 45.7V clamping voltage. Operates across a -55°C to 175°C temperature range with 1µA maximum reverse leakage current. Through-hole mount, silicon construction, and tin-matte contact plating. RoHS compliant.
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Vishay 1N6283A-E3/54 technical specifications.
General
Clamping Voltage
45.7V
Contact Plating
Tin, Matte
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
No
Leakage Current
1uA
Min Breakdown Voltage
31.4V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
1uA
Max Surge Current
32.8A
Mount
Through Hole
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
28.2V
Package Quantity
1400
Packaging
Tape and Reel
Peak Pulse Current
32.8A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
31.4V
Reverse Standoff Voltage
28.2V
RoHS Compliant
Yes
Series
TransZorb®
Compliance
RoHS
Compliant
Datasheet
Vishay 1N6283A-E3/54 Datasheet
Download the complete datasheet for Vishay 1N6283A-E3/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

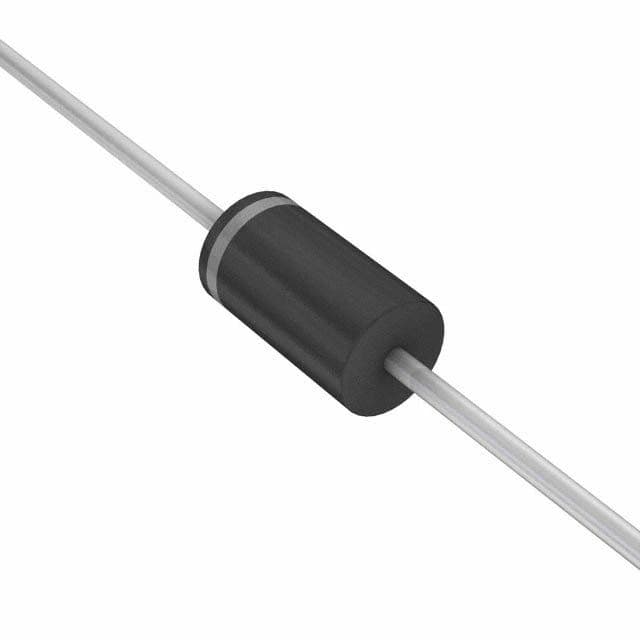

Product Images
