Unidirectional TVS Diode, 1500W peak pulse power, 27.8A peak pulse current. Features 37.1V minimum breakdown voltage and 53.9V clamping voltage. Operates from -55°C to 175°C with 1µA leakage current. Through-hole mount, axial termination, silicon construction, RoHS compliant.
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Vishay 1N6285A-E3/54 technical specifications.
General
Clamping Voltage
53.9V
Contact Plating
Tin, Matte
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
No
Leakage Current
1uA
Min Breakdown Voltage
37.1V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5kW
Max Reverse Leakage Current
1uA
Max Surge Current
27.8A
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
33.3V
Package Quantity
1400
Packaging
Tape and Reel
Peak Pulse Current
27.8A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
37.1V
Reverse Standoff Voltage
33.3V
RoHS Compliant
Yes
Series
TransZorb®
Termination
Axial
Compliance
RoHS
Compliant
Datasheet
Vishay 1N6285A-E3/54 Datasheet
Download the complete datasheet for Vishay 1N6285A-E3/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

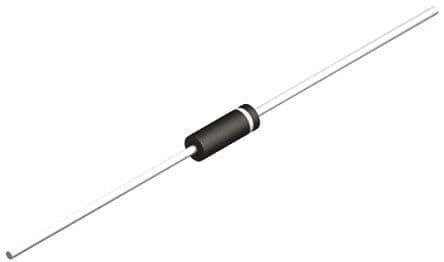

Product Images
