Solid tantalum capacitor, 10µF capacitance, 25V DC rated voltage, 20% tolerance. Features a 2917 (7343 metric) surface mount chip package with a flat construction. Operating temperature range from -55°C to 125°C, with a low leakage current of 2.5µA and ESR of 1Ω. RoHS compliant with a dissipation factor of 6% and ripple current capability of 190mA.
Package2917
Voltage25V
Capacitance10uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Vishay 293D106X9025D2TE3 technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1R
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Leakage Current
2.5uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
190mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D106X9025D2TE3 Datasheet
Download the complete datasheet for Vishay 293D106X9025D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

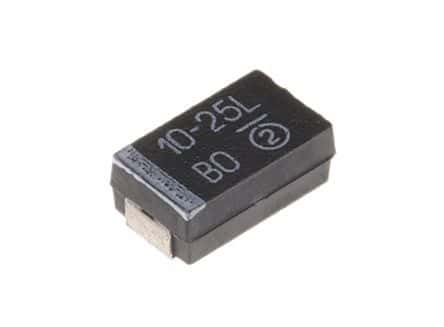

Product Images
