Solid Tantalum Capacitor, 2.2µF capacitance, 35V DC rated voltage, 10% tolerance. Features 2.9 Ohm ESR, 6% dissipation factor, and 800nA leakage current. Operates from -55°C to 125°C, with a ripple current rating of 150mA. Surface mountable in a 6032 metric case code (6mm x 3.2mm x 2.5mm), supplied on tape and reel.
PackageMolded
Voltage35V
Capacitance2.2uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Vishay 293D225X9035C2TE3 technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
Molded
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
2.9R
Features
General Purpose
Height
2.5mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Leakage Current
800nA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
150mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D225X9035C2TE3 Datasheet
Download the complete datasheet for Vishay 293D225X9035C2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

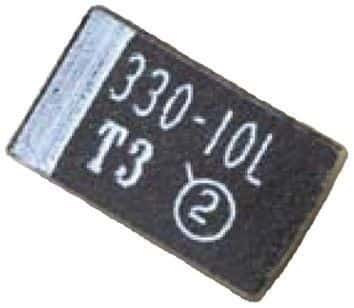

Product Images
