Solid Tantalum Capacitor, 22µF capacitance, 20V voltage rating, and 20% tolerance. Features a 1.1Ω ESR, 4.4µA leakage current, and 200mA ripple current. Operating temperature range from -55°C to 125°C. Surface mountable with a 6032 metric case code, measuring 6mm x 3.2mm x 2.8mm. Packaged in tape and reel.
PackageMolded
Capacitance22uF
Voltage Rating20V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay 293D226X0020C2TE3 technical specifications.
General
Capacitance
22uF
Case Code (Imperial)
2412
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.1R
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Leakage Current
4.4uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Ripple Current
200mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
20V
DC Rated Voltage
2V
Weight
0.005291oz
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D226X0020C2TE3 Datasheet
Download the complete datasheet for Vishay 293D226X0020C2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

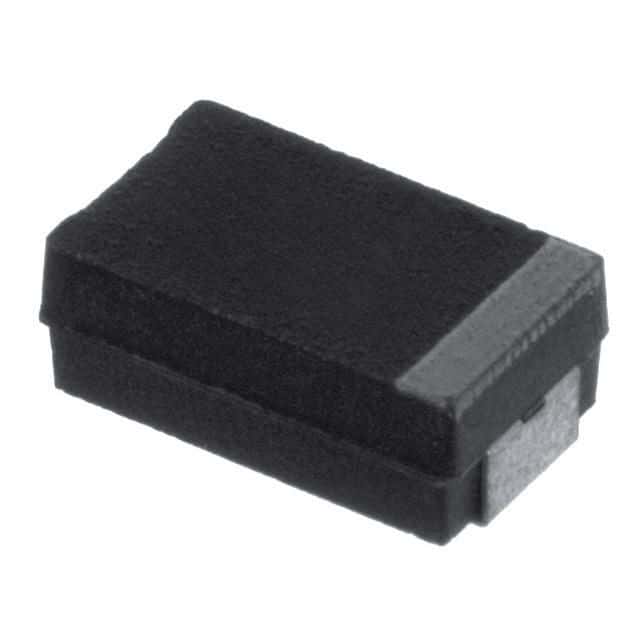

Product Images
