Solid Tantalum Capacitor, 3.3µF capacitance, 25V voltage rating, 10% tolerance. Features 2.3Ω ESR, 6% dissipation factor, and 800nA leakage current. Operates from -55°C to 125°C with a ripple current of 140mA. Surface mountable in a 6032 metric case (6mm x 3.2mm x 2.5mm). Lead-free and RoHS compliant.
PackageMolded
Capacitance3.3uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay 293D335X9025C2TE3 technical specifications.
General
Capacitance
3.3uF
Case Code (Imperial)
2412
Case Code (Metric)
6032
Package/Case
Molded
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
2.3R
Features
General Purpose
Height
2.5mm
Height - Seated (Max)
0.11inch
Lead Free
Lead Free
Leakage Current
800nA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
140mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
25V
DC Rated Voltage
200kV
Width
0.126inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D335X9025C2TE3 Datasheet
Download the complete datasheet for Vishay 293D335X9025C2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

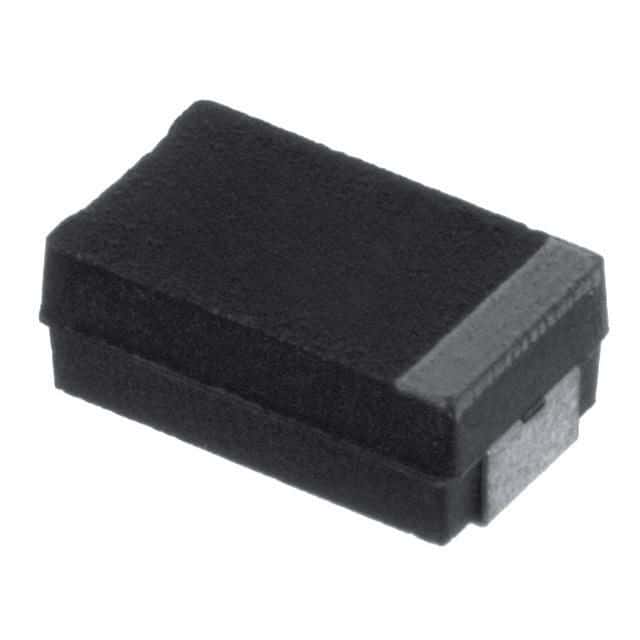

Product Images
