Solid tantalum capacitor, 330µF capacitance, 6.3V DC rated voltage, 10% tolerance. Features 600mΩ ESR, 8% dissipation factor, and 19.8µA leakage current. Surface mount, 2917 case code (7343 metric), with dimensions of 7.3mm length, 4.3mm depth, and 2.8mm height. Operating temperature range from -55°C to 125°C, 500mA ripple current capability, and RoHS compliant.
Package2917
Voltage6.3V
Capacitance330uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Vishay 293D337X96R3D2TE3 technical specifications.
General
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
600mR
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Leakage Current
19.8uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
500mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D337X96R3D2TE3 Datasheet
Download the complete datasheet for Vishay 293D337X96R3D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

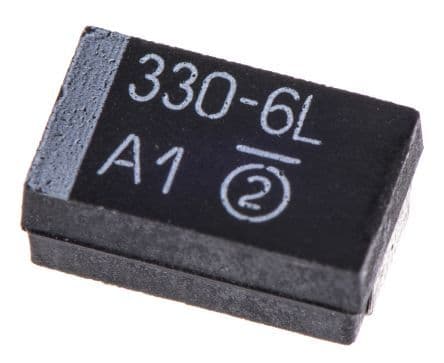

Product Images
