Solid tantalum capacitor with 4.7µF capacitance and 50V DC rating. Features 1.2Ω ESR, 20% tolerance, and a maximum operating temperature of 125°C. Housed in a 7343 metric case (2917 imperial), this surface-mount component offers a leakage current of 2.4µA and ripple current capability of 270mA. The component is lead-free, RoHS compliant, and supplied on tape and reel.
Package2917
Voltage50V
Capacitance4.7uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Vishay 293D475X0050D2TE3 technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 1.2R |
| Features | General Purpose |
| Height | 3.1mm |
| Height - Seated (Max) | 0.122inch |
| Lead Free | Lead Free |
| Leakage Current | 2.4uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Ripple Current | 270mA |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT® 293D |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 5V |
| Weight | 0.023634oz |
| Width | 0.169inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 293D475X0050D2TE3 Datasheet
Download the complete datasheet for Vishay 293D475X0050D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

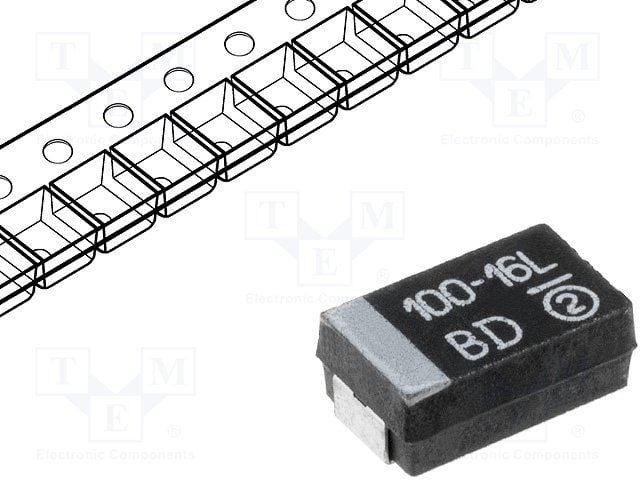

Product Images
