Solid tantalum capacitor, 4.7µF capacitance, 10V DC rated voltage, 10% tolerance. Features a 1206 (3216 metric) surface mount case code with a 1.6mm height, width, and depth. Operating temperature range from -55°C to 125°C, with a maximum ripple current of 120mA and ESR of 5Ω. RoHS compliant, polarized construction, and general-purpose application.
Package1206
Capacitance4.7uF
Voltage Rating10V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay 293D475X9010A2TE3 technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
5R
Features
General Purpose
Height
1.6mm
Lead Free
Lead Free
Leakage Current
500nA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
120mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, 293D
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
10V
DC Rated Voltage
10V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay 293D475X9010A2TE3 Datasheet
Download the complete datasheet for Vishay 293D475X9010A2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

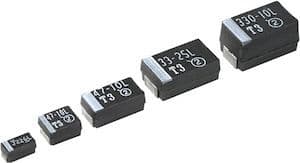

Product Images
