Solid Tantalum Capacitor, 47µF capacitance, 16V DC rated voltage, 10% tolerance. Features 700mΩ ESR, 6% dissipation factor, and 7.5µA leakage current. Surface mount device in a 7343 metric case code (2917 imperial), measuring 7.3mm x 4.3mm x 2.8mm. Operates from -55°C to 125°C, with a ripple current rating of 330mA. RoHS compliant and lead-free.
Package2917
Voltage16V
Capacitance47uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Vishay 293D476X9016D2TE3 technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
700mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Leakage Current
7.5uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
330mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Vishay 293D476X9016D2TE3 Datasheet
Download the complete datasheet for Vishay 293D476X9016D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

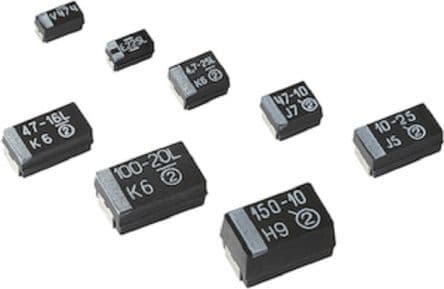

Product Images
