Solid Tantalum Capacitor, 47µF capacitance, 20V DC rated voltage, 10% tolerance. Features 600mΩ ESR, 6% dissipation factor, and 9.4µA leakage current. Operating temperature range from -55°C to 125°C. Surface mountable in a 7343 metric / 2917 imperial case code, measuring 7.3mm x 4.3mm x 4mm. RoHS compliant and supplied on tape and reel.
Package2917
Voltage20V
Capacitance47uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Vishay 293D476X9020E2TE3 technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
600mR
Features
General Purpose
Height
4mm
Height - Seated (Max)
0.17inch
Lead Free
Lead Free
Leakage Current
9.4uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
460mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
20V
Voltage Rating
20V
DC Rated Voltage
2V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D476X9020E2TE3 Datasheet
Download the complete datasheet for Vishay 293D476X9020E2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

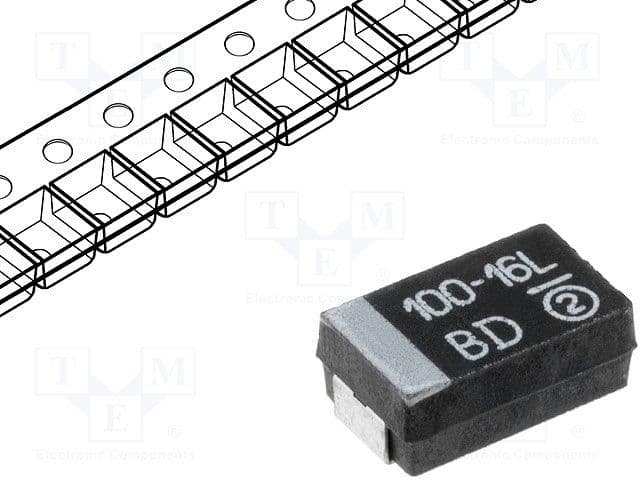

Product Images
