Solid tantalum capacitor, 68µF capacitance, 6.3V DC rated voltage, 10% tolerance. Features a 2917 (7343 metric) surface mount chip package with a flat construction, 7.3mm length, 4.3mm depth, and 2.8mm height. Offers 700mΩ ESR, 4.1µA leakage current, and 220mA ripple current. Operates from -55°C to 125°C, is RoHS compliant, and polarized.
Package2917
Capacitance68uF
Voltage Rating6.3V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay 293D686X96R3D2TE3 technical specifications.
General
Capacitance
68uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
700mR
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Leakage Current
4.1uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Ripple Current
220mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D686X96R3D2TE3 Datasheet
Download the complete datasheet for Vishay 293D686X96R3D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

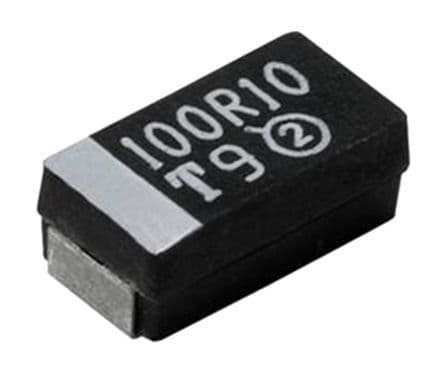

Product Images
