Technical Specifications
Vishay 2N4117A technical specifications.
General
Package/Case
TO-72-4
Current Rating
50mA
Drain to Source Resistance
11kR
Gate to Source Voltage (Vgs)
-40V
Input Capacitance
3pF
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
300mW
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Polarity
N-CHANNEL
Power Dissipation
300mW
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay 2N4117A Datasheet
Download the complete datasheet for Vishay 2N4117A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

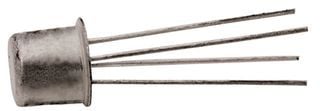

Product Images
