The 2N4338 is a N-CHANNEL junction field-effect transistor with a maximum operating temperature of 175°C and a minimum operating temperature of -55°C. It has a current rating of 50mA and a maximum power dissipation of 300mW. The transistor is packaged in a TO-206AA package and is mounted through a hole. It is not radiation hardened and is not RoHS compliant.
PackageTO-206AA
Current Rating50mA
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Vishay 2N4338 technical specifications.
General
| Package/Case | TO-206AA |
| Current Rating | 50mA |
| Drain to Source Resistance | 2.5kR |
| Drain to Source Voltage (Vdss) | 50V |
| Gate to Source Voltage (Vgs) | -50V |
| Input Capacitance | 7pF |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Termination | Through Hole |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay 2N4338 Datasheet
Download the complete datasheet for Vishay 2N4338 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

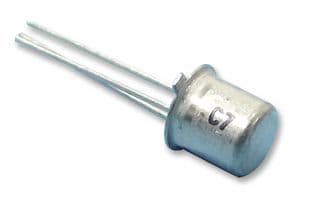

Product Images
