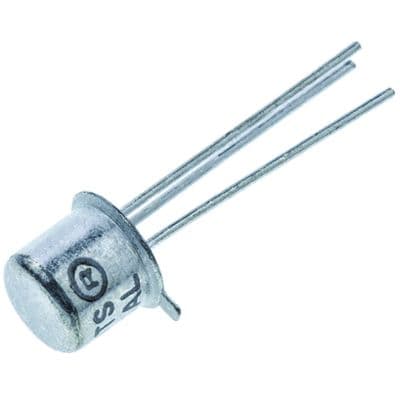

2N4393-E3

N-Channel JFET, 5mA ID, 100R Rds(on), TO-18, Through Hole

N-channel JFET transistor for general-purpose small signal applications. Features a TO-18 hermetically sealed package with 3 pins, suitable for through-hole mounting. Offers a continuous drain current of 5mA, a current rating of 50mA, and a drain-to-source resistance of 100 Ohms. Operates within a temperature range of -55°C to 200°C with a maximum power dissipation of 1.8W. Includes a gate-to-source voltage of -40V and an input capacitance of 14pF.

PackageTO-206AA

Current Rating50mA

MountingThrough Hole

PolarityN-CHANNEL

Quick Jump:

Technical Specifications

Vishay 2N4393-E3 technical specifications.

General

Package/Case	TO-206AA
Continuous Drain Current (ID)	5mA
Current Rating	50mA
Drain to Source Resistance	100R
Gate to Source Voltage (Vgs)	-40V
Height	5.33mm
Input Capacitance	14pF
Length	5.84mm
Max Operating Temperature	200°C
Min Operating Temperature	-55°C
Max Power Dissipation	1.8W
Mount	Through Hole
On-State Resistance	100R
Package Quantity	200
Packaging	Bulk
Polarity	N-CHANNEL
Polarization	N
Power Dissipation	1.8W
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Turn-Off Delay Time	50ns
Turn-On Delay Time	15ns
Width	5.84mm
