Vishay
32CTQ030
Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 30V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3
PackageTO-220-3
Capacitance1.3nF
Current Rating30A
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay 32CTQ030 technical specifications.
General
Average Rectified Current
15A
Capacitance
1.3nF
Package/Case
TO-220-3
Current Rating
30A
Forward Current
30A
Height
9.02mm
Lead Free
Contains Lead
Length
10.66mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
1.75kA
Max Reverse Leakage Current
1.75mA
Max Reverse Voltage (DC)
30V
Max Surge Current
900A
Mount
Through Hole
Package Quantity
1000
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
900A
RoHS Compliant
No
DC Rated Voltage
30V
Width
4.82mm
Compliance
RoHS
Not Compliant
Datasheet
Vishay 32CTQ030 Datasheet
Download the complete datasheet for Vishay 32CTQ030 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

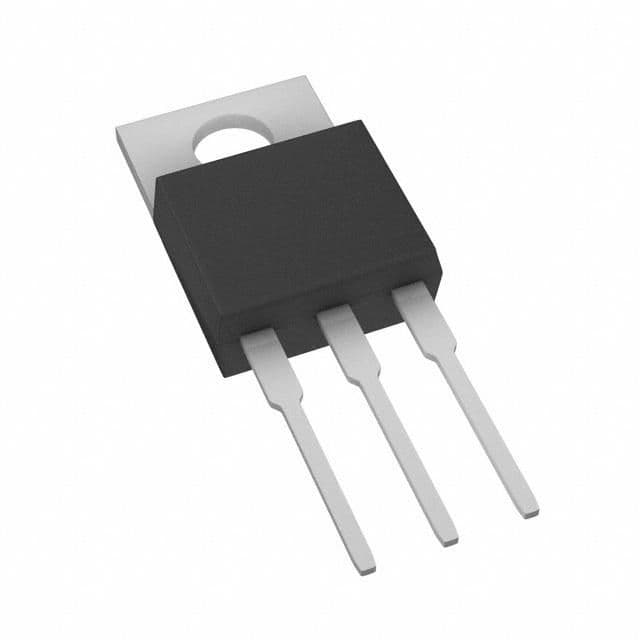

Product Images
